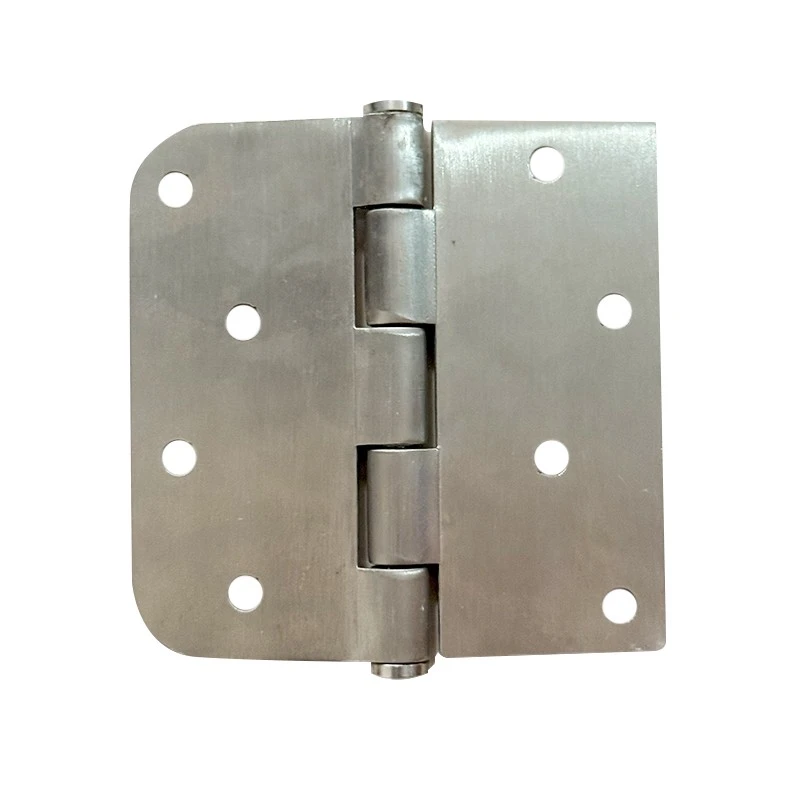

Our door and window hinges are mainly made of two mainstream stainless steel materials: 201 and 304. For coastal docks, rainy areas, or outdoor aluminum alloy windows and balcony doors, we recommend the 304 stainless steel model, which has strong resistance to salt spray and acids and alkalis and will not develop rust spots even after long-term exposure to wind and rain. For dry inland indoor spaces and ordinary wooden doors and windows, the 201 model is recommended, offering better value for money and helping to control overall procurement costs. The hinges are formed from a single sheet of material through stamping, eliminating seams and joints. They feel substantial and substantial, not flimsy. Available in thicknesses of 2.5mm, 3mm, and 4mm, the thinner hinges are suitable for lightweight screens and small windows. For solid wood doors, heavy-duty glass sliding doors, and villa entrance doors, the thicker 4mm hinges are recommended for stable load-bearing capacity and resistance to deformation and sagging even after prolonged use.
A wide variety of styles are available to suit most door and window structures. The most common type is the standard casement hinge, which is easy to install and fits various solid wood doors and casement windows. The mortise and tenon design eliminates the need for grooves in the door leaf or frame; direct drilling and fixing allows for faster installation without damaging the wood structure. There are also detachable hinges; when disassembling the door or window for cleaning or moving, simply pull out the pivot pin to separate the door leaf, making it easy for one person to operate. Additionally, stainless steel sliding hinges specifically designed for outward-opening windows feature a built-in limiting structure, allowing the window to hover at any angle after opening. This prevents sudden impacts to the window frame during strong winds, making them safer for windows used for lighting and ventilation, as well as equipment ventilation windows
Depending on the usage scenario and load-bearing requirements, stainless steel hinges have evolved into various structural forms:
Standard Casement Hinges: The most basic style, consisting of two leaf blades and a pin. Simple in structure and low in cost, suitable for wooden doors and ordinary cabinet doors where high precision is not required
Bearing Hinges: These add ball or oil bearings to the pin, significantly reducing frictional resistance. Smoother and quieter rotation, and the ability to withstand greater loads, making them ideal for heavy-duty solid wood doors and security doors
Mother-and-Child Hinges: Employing a nested design, installation eliminates the need for grooves in the door frame or leaf; they are simply fixed with screws, greatly simplifying the installation process. However, due to the smaller load-bearing area, their load-bearing capacity is weaker, and they are mostly used for thin interior doors.
Flag-shaped hinges: Their unique detachable, split structure allows the door leaf to be easily separated from the frame. This design is commonly used in cold storage doors, public restroom doors, and equipment compartment doors requiring frequent disassembly and maintenance; it can be operated by a single person.
Invisible hinges (3D adjustable): Installed inside the side of the door leaf, they are completely hidden when the door is closed. Besides being aesthetically pleasing, they support three-dimensional adjustment (up/down, forward/backward, left/right), perfectly resolving minor errors after door installation.
Whether for domestic door and window hardware distributors, renovation contractors, or overseas building materials trading companies, these stainless steel door and window hinges offer multiple advantages including rust resistance, quiet operation, high load-bearing capacity, and easy installation. They are suitable for most door and window needs and are a fundamental hardware accessory with stable sales volume in the global building materials market.
