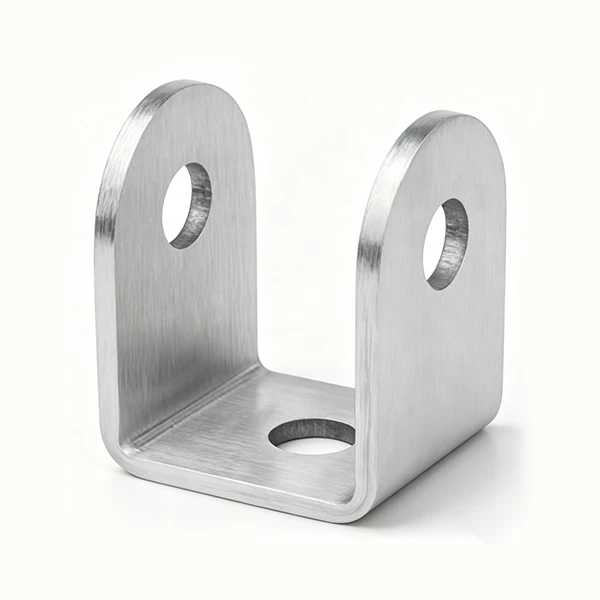

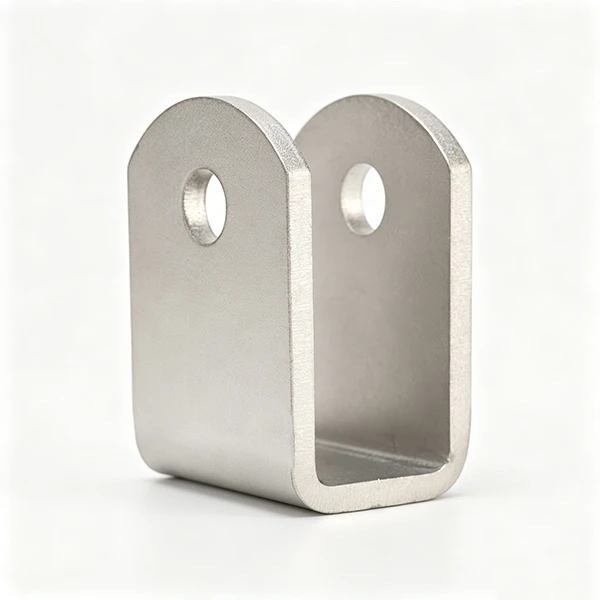

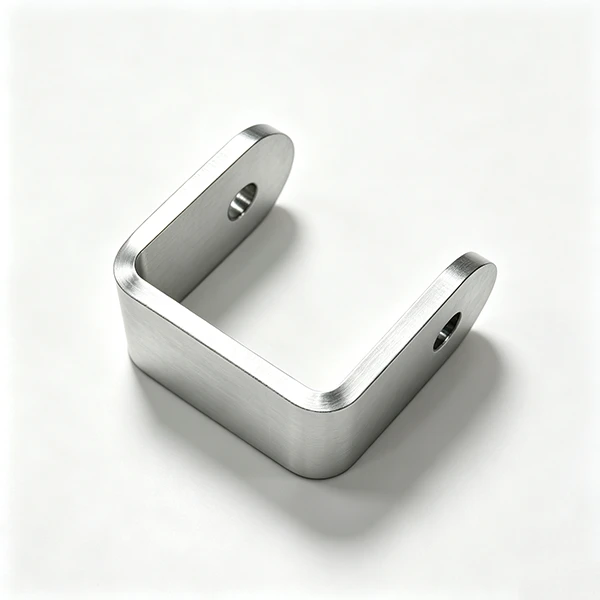

U-Shaped Bracket is formed by integral stamping and cold bending without welded seams. The symmetrical U-channel design distributes loads evenly, reducing local stress concentration. The parallel side wings can clamp and wrap pipes, square tubes, profiles, and equipment bases, suitable for wrap-around installation. For heavy-duty applications, reinforcing ribs can be added to the channel bottom and side plates to enhance compression and torsion resistance. All edges are uniformly deburred and polished, with no sharp cuts. Non-symmetrical U-shapes, special slots, and custom bending angles are supported for non-standard structural customization to fit specific equipment assembly spaces.
Product Advantages
1. Balanced load and stable structure. The U-channel wrap design distributes loads evenly and resists compression and vibration.
2. Good corrosion resistance and weather durability. Electro-galvanizing or hot-dip galvanizing passes salt spray tests for indoor, outdoor, and coastal use.
3. High assembly tolerance. Slotted adjustment holes allow on-site fine-tuning to compensate for dimensional deviations.
4. Wide application range. Channel width, height, thickness, and hole positions are customizable for construction, electromechanical, photovoltaic, machinery, furniture, and shelving.
5. Factory-direct high cost performance. Integrated stamping production ensures stable delivery and controllable costs for projects and export.
6. Safe and reliable workmanship. All edges deburred, coating with strong adhesion, no peeling or missed plating.
Applications
·Construction: Wood structure connectors, column bases, fence fixing, steel structure secondary member connections
·Electromechanical & cable tray: Cable tray, pipeline, and pipe clamping and fixing; equipment frame suspension support
·New energy: Photovoltaic module connection accessories, PV column clamping brackets
·Machinery & equipment: Enclosures, engineering machinery parts, equipment base clamping and fixing
·Storage & furniture: Shelf connectors, U-shaped fixing brackets for storage racks
·Transportation hardware: Fixing of interior components in trailers, containers, and RVs
Storage Guidelines
1. Store in a dry, well-ventilated indoor warehouse. Avoid long-term outdoor stacking exposed to rain or condensation to prevent coating whitening and rust.
2. Place wooden pallets underneath for isolation from the ground; do not place directly on the floor. Control stacking height to avoid deformation of the channel and coating abrasion from excessive pressure.
3. Do not store together with acids, alkalis, or corrosive chemicals to prevent coating damage and loss of anti-corrosion properties.
4. For long-term storage, regularly ventilate and dehumidify. Seal unused products after opening.
Selection Guide
1. Light-duty furniture / cabinet applications: Thickness 1.5–2.0 mm, standard round holes, suitable for light clamping.
2. General electromechanical / indoor piping applications: Thickness 2.0–3.0 mm, electro-galvanized; slotted adjustment holes optional.
3. Heavy-duty outdoor / construction / photovoltaic applications: Thickness 3.0 mm or above, prefer hot-dip galvanized; for heavy loads, choose the reinforced ribbed version.
4. On-site installation tolerance: Prefer the slotted hole version for better assembly flexibility.
5. Coastal / high-humidity corrosive environment: Choose hot-dip galvanized high-zinc coating product (≥85 μm per side).
6. When selecting, leave a small clearance in channel inner width to ensure smooth insertion of the workpiece.
Factory Advantages
1. Source factory for hardware stamping, with own production workshop, full set of stamping and bending equipment, experienced technical team, ample capacity, and stable delivery.
2. Full-process in-house production: mold development, stamping, bending, galvanizing, and quality inspection all completed internally, ensuring dimensional accuracy and quality control.
3. Extensive experience in foreign trade customization, familiar with export order requirements, supports small-batch sampling and mass production, and responds quickly to non-standard drawings and sample requests.
4. Supports online VR factory tour as well as on-site visits.
